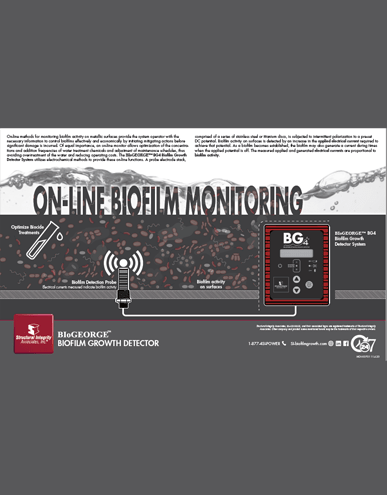

Monitor Biofilm Growth on Surfaces Brochure

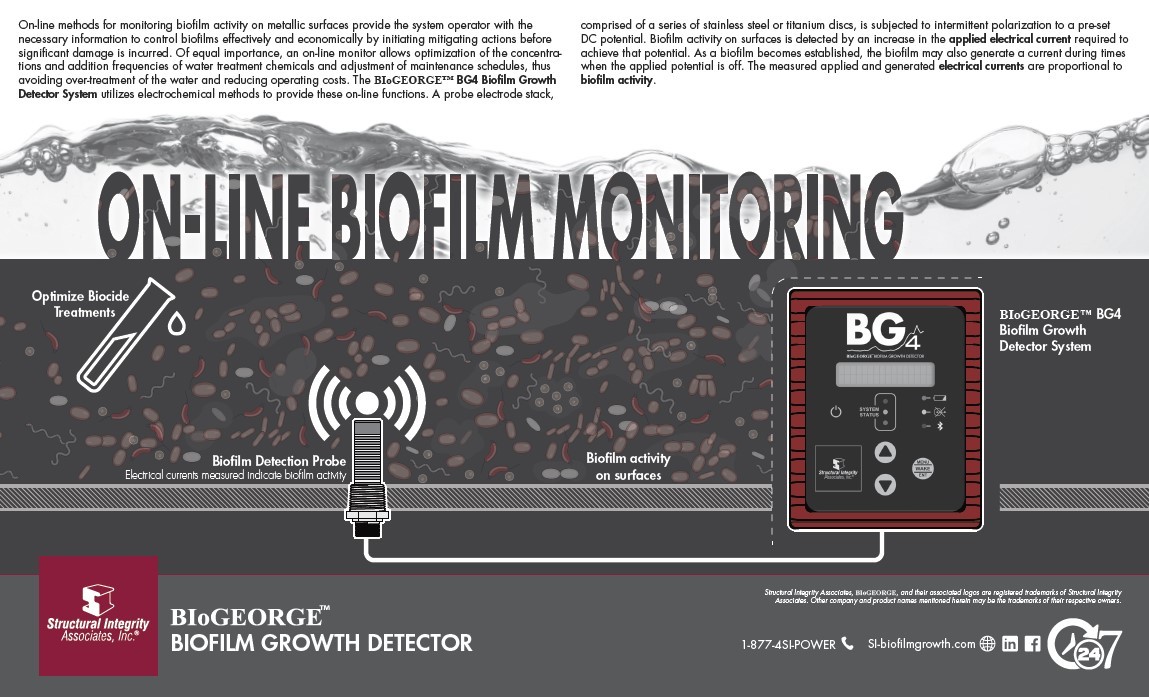

On-line methods for monitoring biofilm activity on metallic surfaces provide the system operator with the necessary information to control biofilms effectively and economically by initiating mitigating actions before significant damage occurs. Of equal importance, an on-line monitor allows optimization of the concentrations and addition frequencies of water treatment chemicals and adjustment of maintenance schedules, thus avoiding over-treatment of the water and reducing operating costs. The BIoGEORGE™ BG4 Biofilm Growth Detector System utilizes electrochemical methods to provide these on-line functions.
A probe electrode stack,comprised of a series of stainless steel or titanium discs, is subjected to intermittent polarization to a pre-set DC potential. Biofilm activity on surfaces is detected by an increase in the applied electrical current required to achieve that potential. As a biofilm becomes established, the biofilm may also generate a current during times when the applied potential is off. The measured applied and generated electrical currents are proportional to biofilm activity.
